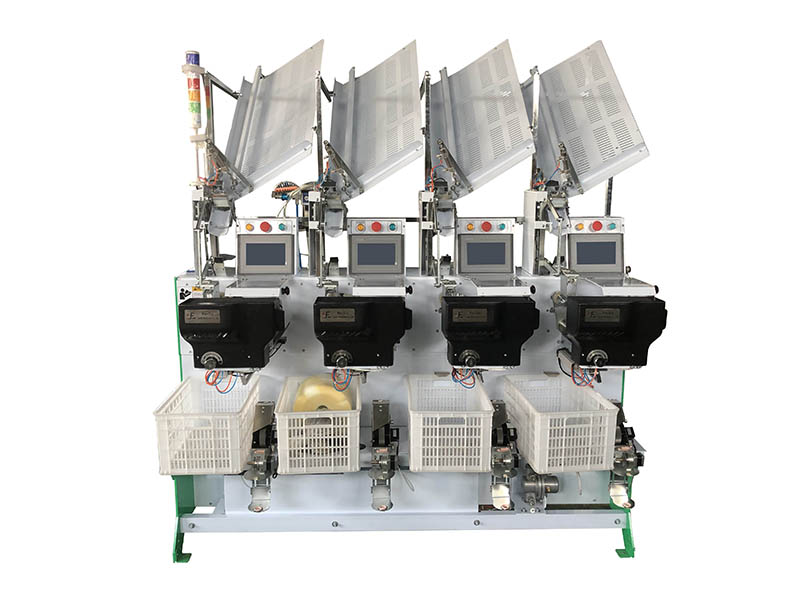

JMo806 automatic winding machine is suitable for winding sewing thread, embroidery threadnylon thread, high-strength thread and other materials. This machine adopts an automatic tubefeeding and changing system, as well as an automatic yarn winding and lifting system. Equippedwith computer automatic length measurement, variable frequency speed regulation, cam typewire device, oil circulation type oiling device, and other structures. Good molding, high efficiency,easy operation, safety and reliability, and wide range of use.

1.Automatic tube changing and automatic head winding system, fast automatic tube changing action andstable induction; Automatic pipe feeding, automatic parking without pipes.

2.Non contact wire breakage detection, sensitive sensing.

3.Computer automatic length measurement with an accuracy of + 5%.

4.Automatic control of linear speed, with the ability to set a linear speed of 300-1200 meters per minute at wl(Adjust according to process)

5.The winding adopts a drum type cam wire system, with fast speed and low noise.

6.The wire cam adopts a special process treatment, which is smooth and wear-resistant without damaging the yam.

7.The circulating oiling system can directly set different tanker speeds, and is matched with a stable linear speedto ensure even oiling. Always maintain a full oillevel for each ingot. Each oiltanker is equipped with an oil fiter-ing device to prevent oil spraying and waste. Large retur oil tank and oil baffle can handle cotton wool and oilreturn generated during operation and filter without polluting the ground. Portable fiter screen, easy to clean.

8.Small footprint, fast speed, and 5-6 times higher efficiency than traditional machines. High degree of automa-tion, significanty reducing the number of workers. The 240d single unit of the joint stock line can produce 5kgof wire per hour, and based on 22 hours, the daily output of each unit is about 110kg.
