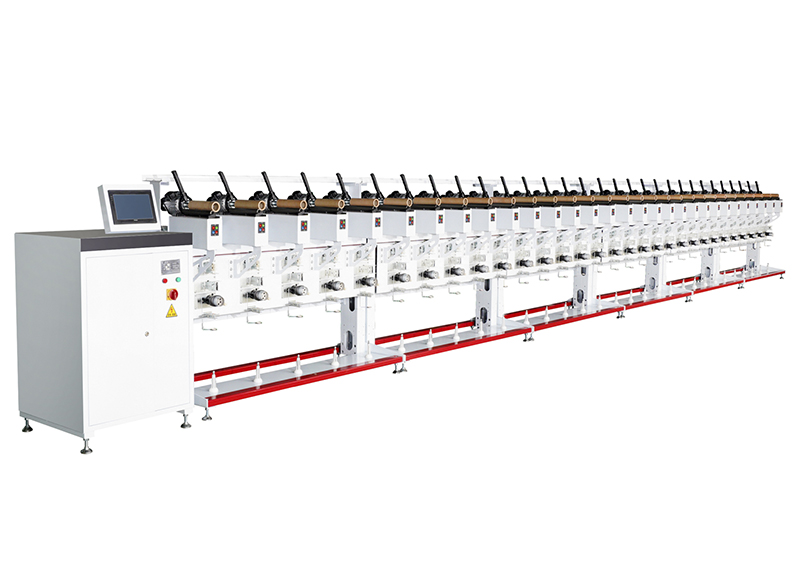

JMo401X precision digital machine is our company newly launched a high-speed winder.The equipment is suitable for chemical fiber yarn, silk, viscose filament loose type of windingyarn and coated and rewinding.
The device structure is simple and strong, light spirit, and generous shape, the windingspeed up to 1000 m/min, the precision of servo control system, set the winding crossing Angle,will guide silk ribbon cable and winding arbitrary adjust the speed ratio, to ensure the varioustechnological requirements of into a cylinder.
| Item | Specification features |
| Mechanical form | The left and right hand single machine,5 Spindles/Section, 40 Spindles/Set |
| The package form | Precision winding, the digital winding |
| Thread form | Micro cordelle drag guide |
| Package shape | Parallel or taper(3 ° 30 ') |
| Winding range | 20-1000d |
| Guide stroke | 50-254mm |
| Package diameter | Φ 280mm (maximum) |
| Tensile force adjustment | The gate type, Online tension |
| Guide the speed | Pine cone1000m/min,And yarn1300m/min |
| For the machine | Micromotor, automatic refueling |
| Operating height | 1190mm (spindle center height) |
| Installed power | 350w/spindle |
| Overall dimensions | 1800mm× 710mm× 1500mm( L×W×H) |
